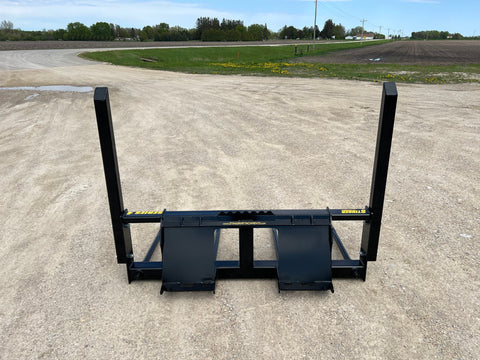

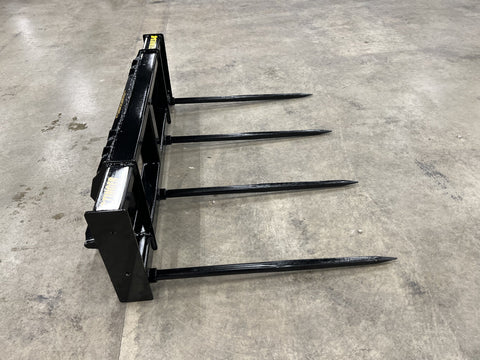

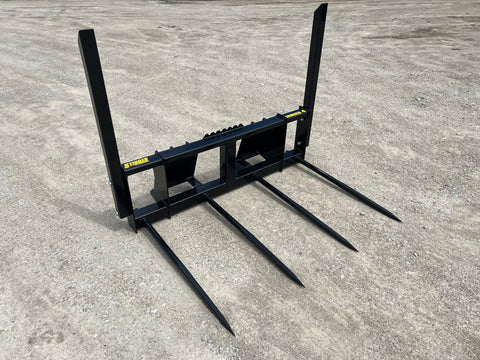

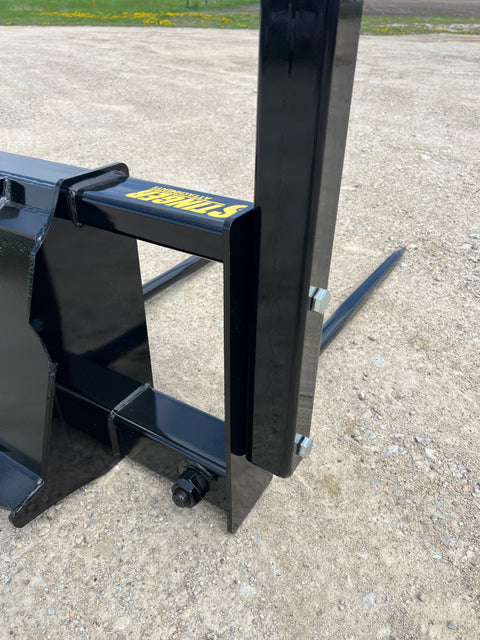

Stinger Skid Bale Spear – Series 4 (BS4) Large Square Bale Mover
Stinger Skid Bale Spear – Series 4 (BS4) Large Square Bale Mover
Stinger Skid Bale Spear – Series 4 (BS4) Large Square Bale Mover
Stinger Skid Bale Spear – Series 4 (BS4) Large Square Bale Mover
Stinger Skid Bale Spear – Series 4 (BS4) Large Square Bale Mover

Stinger Skid Bale Spear – Series 4 (BS4) Large Square Bale Mover

$1,450.00
Brand: Stinger Attachments

A Four-Tine Heavy-Duty Bale Spear Built for Large-Scale Hay Operations
The Stinger Series 4 Bale Spear (BS4) is engineered for large agriculture producers who need to move large square bales — or even two at a time — safely and efficiently. Featuring a powerful four-tine design rated for a combined 14,000 lbs of carrying capacity, this attachment gives your skid steer or compact tractor the muscle required for high-volume hay handling.

The outer tines sit 61" apart, with two additional spears spaced evenly between them for maximum load stability. When equipped with the optional bolt-on bale support (available for the 61" model), the BS4 becomes a true dual-bale mover capable of carrying two large squares simultaneously.

Choose from 39", 43", or 49" spear lengths — all heavy-duty Conus 2 tines with a fully replaceable design.

Built to Handle Big Bales All Day Long
The BS4 frame uses Grade 50 side plates, a 4"×2"×¼" top tube, and a 4"×4"×¼" bottom tube, delivering the durability needed for commercial hay operations. The 70° back angle supports bales securely while keeping operator visibility clear.

  • Weight: 351 lbs (with 43" spears)

  • All tines rated 3,500 lbs @ 30"

  • Compatible with skid steer hookup (optional mounts available for any machine)

Perfect For

  • Transporting large square bales

  • Carrying two bales at once (with 61" bolt-on support)

  • High-volume hay producers

  • Commercial feeding operations

  • Loading/unloading hay trailers

  • Large cattle ranches & dairy operations

American-made, replaceable tines, and backed by true Stinger strength.

Spear Length
Bolt-On Support for 2 Bales
Options
$1,450.00

✓ Direct Manufacturer Shipping  |  ✓ Nationwide Delivery

Not Sure It Fits? Check Compatibility

Need help? Call or text: 262-402-0444

Request a Quote
More Details:

Four-spear design provides stability for large square bales
Built for high-volume hay handling and commercial agricultural use
Can carry two large square bales when equipped with the optional bolt-on support
Choice of three spear lengths and three mounting configurations
Replaceable Conus 2 tines use a double-nut design
Grade 50 steel side plates
Heavy-duty top and bottom support tubes
70° back angle supports bales while maintaining visibility
Built-in safety step
American-made construction

Spear Quantity: Four
Outer Spear Spacing: 61"
Available Spear Lengths: 39", 43", and 49"
Usable Spear Lengths: 33", 37", and 43.5" respectively
Individual Spear Rating: 3,500 lb at 30"
Combined Stated Capacity: 14,000 lb
Top Support Tube: 4" x 2" x 1/4"
Bottom Tube: 4" x 4" x 1/4"
Side Plates: 3/8" Grade 50 steel
Back Angle: 70°
Approximate Weight: 351 lb with 43" spears
Dual-Bale Bolt-On Support: Optional

Machine Type: Skid steer, compact track loader, or compatible tractor/loader
Available Mounts: Universal Quick Attach, John Deere 100–500 Series, or Global Euro
Select the mount that matches your machine

Bale spear frame with built-in safety step
Four replaceable Conus 2 spears in the selected length
Selected mounting plate
Bolt-on dual-bale support only when selected
