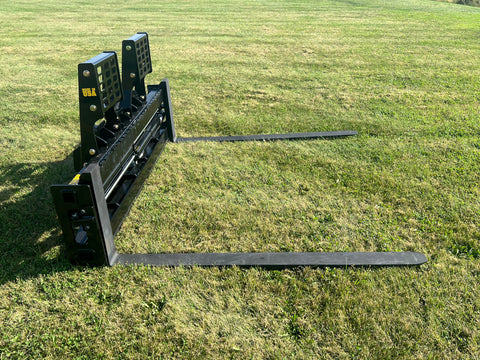

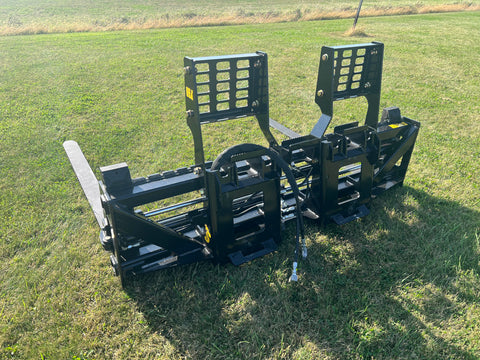

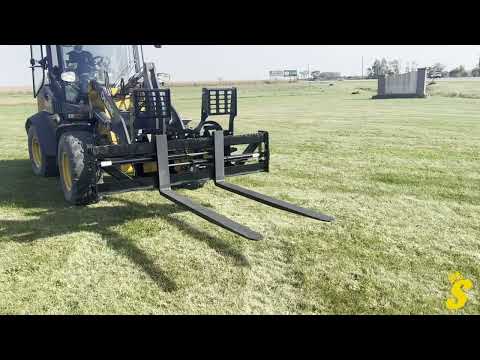

Stinger Skid Steer Class 3 Pallet Forks Attachment | Hydraulic (PF3H)

Extreme-duty Class 3 hydraulic pallet fork system for high-capacity lifting
Hydraulic fork positioning adjusts fork spacing from inside the cab
Built for high-horsepower skid steers, utility tractors, and mid-sized payloaders
Precision jig-welded frame maintains tight tolerances for smooth fork movement
Structural-grade steel construction with reinforced top and bottom support tubes
Premium Cascade USA-made forks
Available with 8,200 lb or 10,000 lb fork sets
Multiple carriage widths and fork lengths available
Solid-back and walk-through frame configurations available
Designed for industrial, construction, agricultural, lumber, pipe, feed, equipment, and palletized-material handling

Overall Height: 45"
Approximate Base Attachment Weight: 600 lb
Top Carrier Bar: 1.5" x 4.5" machined bar
Top Support Tube: 3" x 3" x 3/8" wall
Bottom Carrier Plate: 1/2" x 3" plate
Bottom Support Tube: 3" x 4" x 3/8" wall
Fork Set Capacities: 8,200 lb or 10,000 lb
Fork Lengths: 48", 60", or 72"
Carriage Widths: 48", 60", 72", 84", or 96"

Hydraulic Function: In-cab adjustment moves the forks in and out for different load and pallet widths
Hydraulic flow, pressure, hose, and coupler requirements are not published on the current listing. Contact CrewTough to confirm compatibility with your machine before ordering.

Machine Types: High-horsepower skid steer, utility tractor, or mid-sized payloader
Mounting: Multiple mount options are available
Frame Options: Solid-back or walk-through configurations; step options are available
The current Size selector configures carriage width, fork capacity, and fork length. Mount, back configuration, and step options are not separately selectable on the product page; contact CrewTough to confirm the complete configuration before ordering.

Selected PF3H Class 3 hydraulic pallet fork frame configuration
Matched set of Cascade USA-made forks in the selected capacity and length
Hydraulic fork-positioning system
Hoses and couplers are not confirmed in the current product information; contact CrewTough before ordering.

Fork Warranty: 3 years
Frame Warranty: 2 years

Freight shipping rates shown below. Built for commercial, agricultural, and land-clearing operations.

Commercial Freight Shipping (Dock Required)
Business location with loading dock required

Zone 1 (WI, MN, IA): $175
Zone 2 (SD, ND, NE, OK, KS, MO, IL, MI, IN, OH, TN, KY, AR): $250
Zone 3 (NV, AZ, NM, CO, UT, TX, LA, MS, AL, GA, SC, NC, VA, WV, DC, MD, DE, NJ, PA, NY): $325
Zone 4 (WA, ID, MT, CA, FL, CT, RI, MA, VT, NH, ME): $375

Non-Dock Delivery (Farm, Ranch, Home, Residential)
No loading dock available

Zone 1: $225
Zone 2: $300
Zone 3: $375
Zone 4: $425

Important Freight Notes
Please call us for combined shipping on multiple items
Delivery address must be tractor-trailer accessible
Unloading equipment required at delivery
Commercial addresses must have regular business hours
No residential dwellings on commercial property
