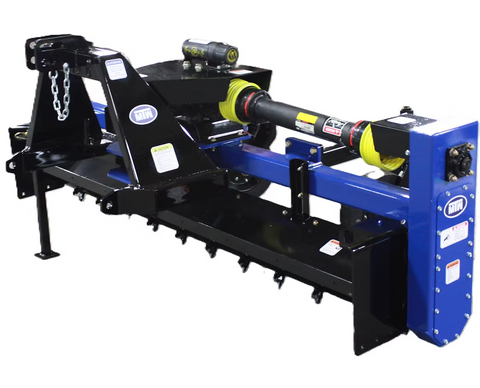

MTW TerrainX RTS PTO Power Box Rake / Soil Conditioner
MTW TerrainX RTS PTO Power Box Rake / Soil Conditioner

MTW TerrainX RTS PTO Power Box Rake / Soil Conditioner

$11,510.00
Brand: MTW

Built for 20–35 HP Tractors. Built to Work.

The MTW TerrainX RTS PTO Power Box Rake is designed for 20–35 horsepower tractors equipped with a Category 0–1 three-point hitch. It delivers controlled grading, soil conditioning, and surface prep performance without oversizing your machine.

This unit ships configured as a power box rake and expands into a multi-function terrain system using MTW’s RTS quick-change rotor platform.

Proudly built in the USA.

Size
Angle
Tooth Type
$11,510.00
More Details:
In Pics!

Available Sizes (Working Width)
48” (45” @ 10°, 42” @ 20°)
60” (57” @ 10°, 54” @ 20°)
72” (69” @ 10°, 66” @ 20°)
84” (81” @ 10°, 78” @ 20°)
Weight Range: 970–1100 lbs

Tractor Compatibility
20–35 HP tractors
Category 0–1 three-point hitch
60 HP PTO gearbox
1-1/2” drive shaft
80 chain
Oil bath chain case
Designed for consistent PTO-driven torque and long service life.

Angle Options
Manual Angle
Hydraulic Angle
On-the-fly hydraulic adjustment available
Hydraulic angle allows surface corrections without leaving the seat.

Tooth Options
Carbide Weld-On
Replaceable Carbide-Tipped
Choose based on wear preference and serviceability needs.

RTS Rotary Tool System
Built around MTW’s RTS (Rotary Tool System) platform.
Base unit functions as a power box rake.
Optional quick-change RTS rotors (sold separately):

Standard Rake
Rock Rake
Tiller
Broom
Switch rotor types to match soil conditions and job requirements.

Construction & Durability
.25” tube frame
6” rotor
Steel bearing housings (replace insert, not full flange)
Triple lip sealed bearings
AR steel skid and chain case guarding
Full rotor shielding
Solid rubber no-flat wheels
Height-adjustable wheels (1” spacers)
Tool-free pin-adjust material bar
Built for long-term use in landscaping, agricultural, and property maintenance applications.

Applications
Seedbed preparation
Rock and debris removal
Soil cultivation
Surface leveling
Property maintenance
Landscaping and site prep

Specifications
Model: MTW TerrainX RTS PTO
Drive Type: PTO Driven
Horsepower Requirement: 20–35 HP
Hitch: Category 0–1
Rotor Diameter: 6”
Drive Shaft: 1-1/2”
Chain: 80
Gearbox Rating: 60 HP
Frame: .25” Tube
Angle Options: Manual or Hydraulic
Tooth Options: Carbide Weld-On or Replaceable Carbide
Weight: 970–1100 lbs
Country of Origin: USA

Shipping included in the lower 48 states.

Alaska, Hawaii, and remote areas — call for a freight quote.

MTW provides a 12-month limited warranty covering defects in materials and workmanship under normal use.

Excludes wear components and ground-engaging parts (teeth, bearings, sprockets, chains, cutting edges, brushes, etc.) and damage from misuse, unauthorized modification, or improper repairs.

Warranty registration required within 15 days of commencement.
MTW reserves the right to repair or replace defective components.
