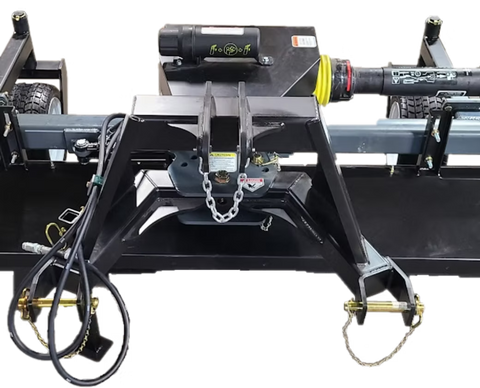

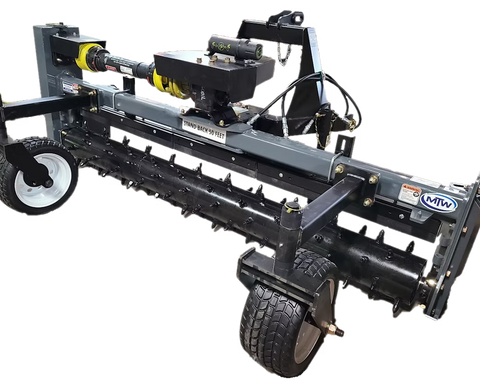

MTW TerrainTitan RTS PTO Power Box Rake / Soil Conditioner
Brand: MTW
Built for 75–115 HP Tractors. Built for Maximum Production.
The MTW TerrainTitan RTS PTO Power Box Rake is engineered for 75–115 horsepower tractors equipped with a Category 2–3 three-point hitch. It is designed for large-scale land preparation, heavy ground engagement, and continuous operation under demanding conditions.
This is MTW’s Series 3 PTO platform — built for operators who need structural strength, drivetrain capacity, and reliable uptime.
Proudly manufactured in the USA.
Need help? Call or text: 630-890-3822.
We'll make sure it fits your machine and your job.
More Details:
Available Sizes (Working Width)
84” (81” @ 10°, 78” @ 20°)
96” (93” @ 10°, 90” @ 20°)
120” (117” @ 10°, 114” @ 20°)
Weight Range: 1600–1950 lbs
Tractor Compatibility
75–115 HP tractors
Category 2–3 three-point hitch
90 HP gearbox
2” drive shaft
100 chain
Oil bath chain case
Oversized drivetrain components support aggressive soil conditioning and heavy material movement.
Angle Options
Manual Angle
Hydraulic Angle
On-the-fly hydraulic adjustment available
Hydraulic angle allows precision grading adjustments under load without leaving the seat.
Tooth Options
Carbide Weld-On
Replaceable Carbide-Tipped
Select based on wear expectations and long-term maintenance preference.
RTS Rotary Tool System
Built around MTW’s patented RTS (Rotary Tool System).
Base unit functions as a heavy-duty power box rake.
Optional RTS rotors (sold separately):
Standard Rake
Rock Rake
Expand capability for aggressive soil conditioning and debris management without replacing the entire attachment.
Construction & Structural Strength
.375” tube frame
Heavy-duty structural design
8” rotor
Steel bearing housings (replace insert only)
Triple lip sealed bearings
AR steel skid and chain case guarding
Full rotor shield
Solid rubber no-flat wheels
Height-adjustable wheels (1” spacers)
Tool-free pin-adjust material bar
Built for agricultural operations, commercial construction, and large-scale site development.
Applications
Large-acreage seedbed preparation
Heavy rock and debris removal
Commercial site grading
Agricultural land development
High-production soil conditioning
Designed for operators who require maximum strength and durability on expansive properties.
Specifications
Model: MTW TerrainTitan RTS PTO
Series: 3
Machine Type: Tractor PTO
Horsepower Requirement: 75–115 HP
Hitch: Category 2–3
Rotor Diameter: 8”
Drive Shaft: 2”
Chain: 100
Gearbox Rating: 90 HP
Frame: .375” Tube
Angle Options: Manual or Hydraulic
Tooth Options: Carbide Weld-On or Replaceable Carbide-Tipped
Weight: 1600–1950 lbs
Country of Origin: USA
Shipping included in the lower 48 states.
Alaska, Hawaii, and Key West — call for a freight quote.
MTW provides a 12-month limited warranty covering defects in materials and workmanship under normal use.
Wear components and ground-engaging parts (teeth, bearings, sprockets, chains, cutting edges, brushes, etc.) are excluded, along with damage caused by misuse, modification, accident, or unauthorized repair.
Warranty registration required within 15 days of commencement.
MTW reserves the right to repair or replace defective components.
