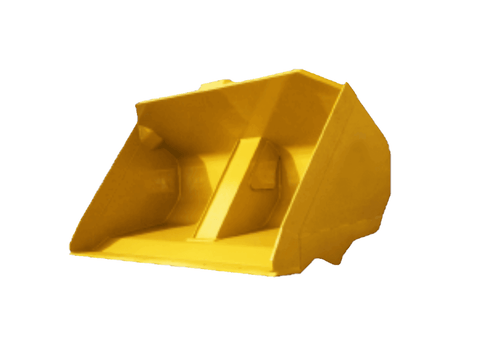

MAXX Rollout Buckets for Skid Steers & Small Wheel Loaders | High-Dump Bucket

Regular price $12,980.00
Brand: MAXX Attachments

The MAXX Rollout Bucket is built CrewTough for operators who need maximum dump height, precision control, and dependable performance when handling a wide range of materials. Designed for skid steers and small wheel loaders, this high-dump bucket is a go-to solution for dairies, feed operations, recycling centers, landfills, transfer stations, and debris-handling applications where standard bucket dump heights fall short.

Engineered with a single vertically mounted dump cylinder, the MAXX Rollout Bucket delivers superior dump motion, longer component life, and smoother operation compared to designs using dual bottom cylinders or floor pockets. This center-mounted system dramatically reduces metal fatigue and maximizes the ratio of cylinder stroke to rollout distance — meaning cleaner dumps, higher reach, and consistent performance shift after shift.

Whether you’re loading feed trucks, elevating material into grinders, or handling abrasive and variable-density debris, MAXX Rollout Buckets are purpose-built to outperform. With multiple capacities available and optional mounting configurations, you can match the bucket to your machine and your operation for long-term reliability.

Built to handle demanding material environments and tested to last up to 30,000 hours, this is the rollout bucket your crew will trust day after day.

Bucket Capacity
Mount Option
Regular price $12,980.00

✓ Direct Manufacturer Shipping  |  ✓ Nationwide Delivery

Need help? Call or text: 262-402-0444

More Details:

High-dump rollout design for increased dump clearance
Ideal for dairies, landfills, recycling centers & high-reach loading
Single center-mounted dump cylinder for reduced fatigue & smoother operation
Slide links protect cylinder & prevent overextension
Relief valve standard
Universal skid steer coupler or direct-mount pin-on options
Replaceable bolt-on cutting edges
Engineered to handle varied material types, densities & abrasiveness

Model Specifications
0.75 cu yd — 4469D1
Weight: 925 lbs
Cylinder: 2.5" bore / 1.25" rod / 12" stroke
Moldboard: 1/8"
1.00 cu yd — 7161D1
Weight: 1100 lbs
Cylinder: 2.5" bore / 1.25" rod / 12" stroke
Moldboard: 1/8"
1.25 cu yd — 2510D1
Weight: 1275 lbs
Cylinder: 2.5" bore / 1.25" rod / 12" stroke
Moldboard: 1/8"
1.50 cu yd — 6127D1
Weight: 1450 lbs
Cylinder: 2.5" bore / 1.25" rod / 12" stroke
Moldboard: 1/8"
