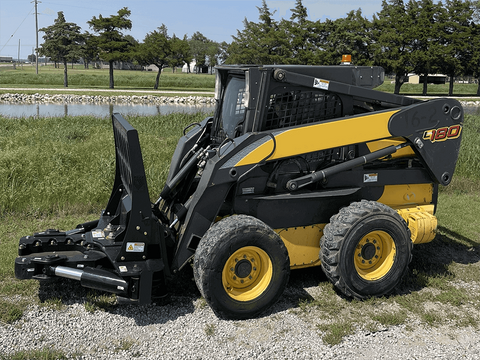

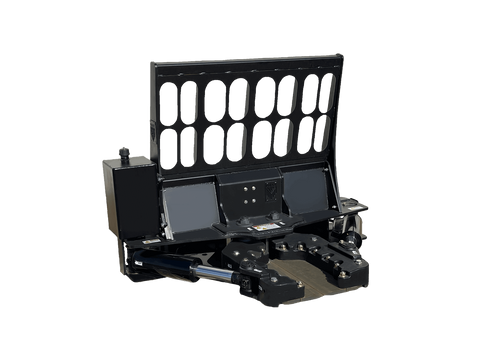

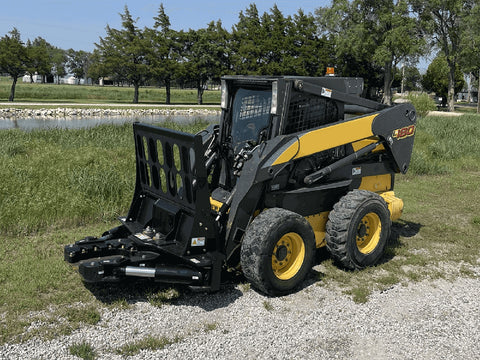

MAXX Ranch Axe Tree Shear – 14" & 16" Heavy-Duty Skid Steer Tree Shears

Solid cast steel shear arms (14") – 60% stronger than comparable fabricated designs
Fabricated A572 steel shearing arms on 16" model for increased diameter capacity
Choose Standard or Extended Arms on 14" model
Rated for trees up to 14" or 16" diameter depending on model
Ground-level cutting capability
¾" AR400 replaceable bolt-on milled shear blade
Dual heavy-duty cylinders: 3" rod / 5" bore / 10" stroke
Hydraulic system rated to 4,000 psi
Guarded hard hydraulic lines for hose protection
Universal skid steer quick attach
Standard flow compatible (minimum 15 GPM)
Minimum machine lift capacity: 1,850 lbs
Optional brushguard

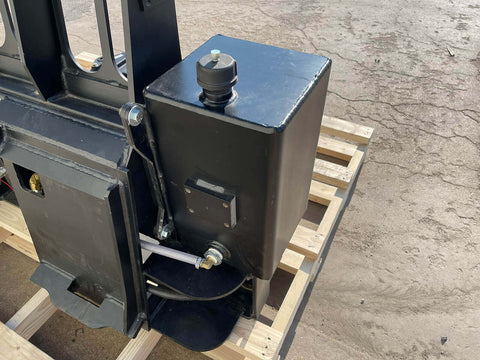

Optional 5-gallon spray kit for regrowth prevention

Model Specs
14" Ranch Axe – Standard Arms (3458D9)
• Weight: 1,630 lbs
• Height: 24"
• Width: 66"
• Depth: 46"

14" Ranch Axe – Extended Arms (3460D9)
• Weight: 1,630 lbs
• Height: 24"
• Width: 66"
• Depth: 50"

14" Ranch Axe – Brushguard Standard Arms (3466D9)
• Weight: 1,820 lbs
• Height: 50"
• Width: 66"
• Depth: 46"

14" Ranch Axe – Brushguard Extended Arms (3468D9)
• Weight: 1,820 lbs
• Height: 50"
• Width: 66"
• Depth: 50"

16" Ranch Axe – Brushguard (7180D2)
• Weight: 1,925 lbs
• Height: 50"
• Width: 66"
• Depth: 48"

At Maxx Attachments, a division of Maize Corporation ("Maxx"), we stand behind our skid steer attachments with a
straightforward warranty for the original purchaser. Here’s what you need to know:
What’s Covered
We warrant that our products will be free from defects in materials and workmanship under normal use. If a defect is
confirmed after inspection or review of your claim (including photos), we’ll repair or replace the affected parts at our
discretion. Here’s the coverage:
• Standard Products (e.g., Tree Shears, Tree Saws, Bunksweeps):
o Structural components: 12 months
o Moving parts (e.g., hydraulic cylinders, pivot pins, bearings): 6 months
o Hydraulic components (e.g., motors, fittings): 6 months
• Specialty/Custom Products: Contact us for specific warranty terms, as these may differ.
• Replacement Parts: Covered for the remaining original warranty period or 30 days from receipt if the original
warranty has expired.
What’s Not Covered
This warranty doesn’t apply to:
• Damage from misuse, neglect, accidents, or lack of regular maintenance.
• Products stored improperly for extended periods before use (coverage at our discretion).
• Parts not made by Maxx (e.g., third-party components) beyond their manufacturer’s warranty.
• Wear items (e.g., blades, wear pads) unless they are defective from the start.
• Products modified or repaired without our approval.
How to Make a Claim
1. Contact Us First: Reach out within 30 days of noticing a potential defect. Use our Warranty Claim Form (available
at www.maxxattachments.com/policy) and email us at sales@maxxattachments.com or call us at 1-316-722-8710.
2. Provide Details: Include the serial number, purchase date, hours used, and photos of the issue.
3. Get Approval: We’ll review your claim and authorize any repairs or returns within 10 business days of receiving all
required info. Unauthorized work or returns won’t be reimbursed.
4. Resolution: If approved, we’ll repair or replace the defective part at no cost to you.
Our Commitment
• Fast Support: We’ll process claims within 10 business days of receiving complete documentation.
• Credit Flexibility: Approved warranty credits can be applied to any Maxx purchase. If unused within 12 months,
request a refund—we’ll send payment promptly.
• Goodwill Option: In special cases, we may offer goodwill credits (for future purchases only) to keep you moving.
Important Notes
• Your Remedy: Repair or replacement is our sole obligation under this warranty. We don’t cover extras like
shipping, downtime, or labor beyond pre-approved claims.
• No Other Promises: This warranty replaces all other guarantees, including implied ones like merchantability or
fitness for a specific purpose, unless stated here.
• Legal Stuff: This agreement follows Kansas law. Notices must be in writing and sent to Maize Corporation, 5820 N
119th St, Maize, KS 67101.
We’re here to help you get the most out of your Maxx Attachments. Questions? Visit www.maxxattachments.com or
contact us at 1-316-722-8710.
