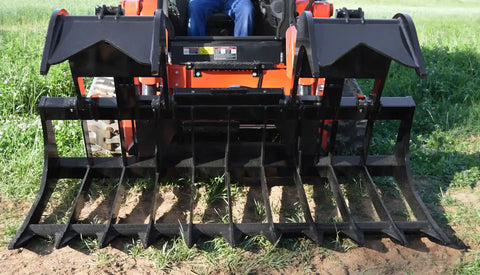

Loflin XHD Root Grapple | 66"–84"

• Extreme-heavy-duty construction for land clearing and demolition
• Independent upper grapple tines secure uneven loads
• Open-bottom design allows loose dirt to fall through
• 1" upper grapple tines
• 1/2" lower tines with reinforced 1" outside tines
• Approximately 9,500 lb grappling force
• Reinforced skid-steer quick-attach structure
• Covered hydraulic cylinders
• Protected hydraulic hose routing
• Fully greaseable hinge points
• Oversized greaseable pivot pins
• Curved lower profile slides along the ground without excessive digging
• Parker hoses, fittings and flat-face couplers included
• Four available widths
• Made in the USA by Loflin Fabrication

Product Type: Xtra Heavy Duty Root Grapple
Machine Type: Full-Size Skid Steers and Compact Track Loaders
Widths: 66", 72", 78" and 84"
Overall Height: 34-1/2"
Overall Length: 39-1/2"
Maximum Opening: 33-1/4"
Grappling Force: Approximately 9,500 lb
Cylinders: Two 2" × 10"
Upper Grapple Tines: 1" Independent Tines
Lower Tines: 1/2"
Outside Tines: 1"
Tine Spacing: Approximately 8-1/2"–9"
Pivot Pins: Oversized 1-1/4" Greaseable Pins
Mount: Universal Skid-Steer Quick Attach
Machine Class: 75–120 HP per 2026 Loflin Dealer Price List
Country of Manufacture: USA

Product Weights
66": Not provided
72": 1,058 lb
78": 1,063 lb
84": 1,135 lb

Auxiliary Hydraulics: Required
Function: Opens and closes the independent grapple tines
Cylinders: Two 2" × 10"
Connections: Parker hoses, fittings and flat-face couplers included
Case Drain: Not Required
Hydraulic Flow: Not provided by manufacturer
Maximum Pressure: Not provided by manufacturer
Coupler Size: Confirm with customer’s machine

Confirm pressure, coupler size, rated operating capacity and attachment weight before releasing an order.

Machine Types: Full-Size Skid Steers and Compact Track Loaders
Mount: Universal Skid-Steer Quick Attach
Machine Class: 75–120 HP per the 2026 Loflin dealer sheet
Auxiliary Hydraulics: Required

Before ordering, confirm:
• Machine make, model and year
• Engine horsepower
• Rated operating capacity and tipping load
• Machine operating weight and overall width
• Auxiliary hydraulic pressure
• Coupler size
• Desired grapple width

Horsepower alone does not confirm compatibility. Loflin’s dealer sheet states 75–120 HP, while current product information may reference approximately 110 HP. Confirm machines over 110 HP with Loflin.

• Loflin XHD Root Grapple
• Two independent grapple assemblies
• Two covered hydraulic cylinders
• Parker hoses and fittings
• Flat-face couplers
• Universal skid-steer quick-attach mounting plate

Covered by Loflin Fabrication’s one-year limited manufacturer warranty against defects in materials and workmanship under proper use.

The warranty excludes normal wear, tines, pins, bushings, hoses, fittings, couplers, paint, misuse, improper maintenance, unauthorized repairs or modifications, incorrect hydraulic pressure, overloading and use outside the intended application.

Contact CrewTough before repairs or returns. Claims may require the order number, serial number, machine information, photos and video. Final claim approval is determined by Loflin. Freight, service, removal, installation, pickup and delivery expenses may be the customer’s responsibility.

Returns and cancellations require CrewTough authorization. Built-to-order, configured, installed, used or damaged products may not be returnable. Approved returns may be subject to return freight and restocking charges.

This attachment ships by commercial freight. A freight quote is required unless shipping is included in a written CrewTough quote or order.

The customer must provide an accurate delivery address and identify whether the destination is commercial with unloading equipment, a freight terminal or residential with liftgate service.

Inspect the shipment before signing and document visible damage on the delivery receipt.
