$920.00
Brand: Gentec Equipment



The Gentec Mechanical Weld-On Excavator Thumb gives compact excavators a better way to grab, hold, sort, and move logs, rocks, brush, concrete, demolition debris, and other irregular material.

Unlike a hydraulic thumb, this model is manually positioned using the adjustable linkage. That makes it a practical, lower-cost option for operators who don’t have auxiliary hydraulics or only need a thumb occasionally. Three working positions allow the thumb to be adjusted for different jobs, and it folds against the excavator stick when it isn’t being used.

Choose between the 24" MT824 and 30" MT830 based on your excavator, bucket geometry, and coupler setup. The longer model may be needed when additional reach is required to properly meet the bucket.

Best for: Handling brush, logs, rocks, concrete pieces, construction debris, and loose land-clearing material.

Quick fit check: Designed for excavators weighing approximately 4,000–9,900 lb, depending on the selected model. Professional weld-on installation is required. Auxiliary hydraulics are not required.

Not sure which size fits? Send CrewTough your excavator make, model, year, operating weight, bucket width, and coupler information. We’ll help confirm the right setup before you order.

Thumb Size
Does your excavator have a quick-coupler?
$920.00
Not Sure It Fits? Check Compatibility

Need help? Call or text: 262-402-0444.

We'll make sure it fits your machine and your job.

Request a Quote
More Details:

• Simple mechanical operation provides a lower-cost alternative to a hydraulic thumb
• Works with the bucket to grab, hold, sort, and position irregular material
• Three working positions at 90°, 105°, and 120°
• Folds against the excavator stick when not in use
• No loose linkage parts when properly stowed
• 1/2" AR400/Hardox 400 tines with reinforced ladder-frame construction and gussets
• A-frame linkage increases torsional rigidity
• Greaseable 2" main pin
• Replacement parts available

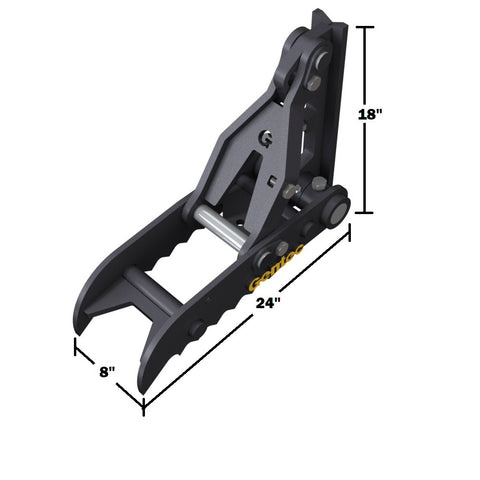

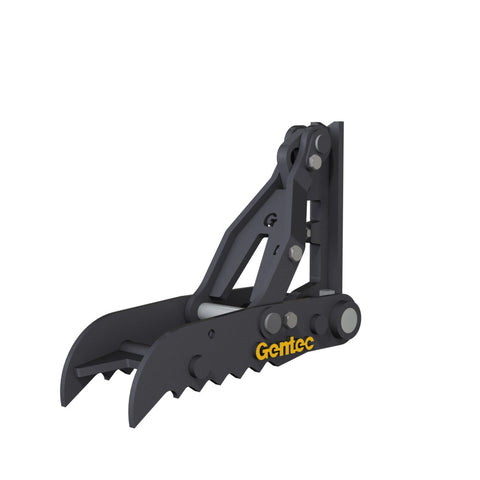

MT824 — 8" x 24"
Recommended excavator weight: 4,000–9,000 lb
Thumb width: 8"
Thumb length: 24"
Product weight: 102 lb
Backplate width: 3"
Backplate height: 18"
Tine thickness: 1/2"
Tine material: AR400 / Hardox 400
Main pin diameter: 2"
Working positions: 90°, 105°, and 120°
Maximum extension angle: 120°
Distance from stick when stowed: 7.5"
Mounting style: Weld-on
Operation: Mechanical

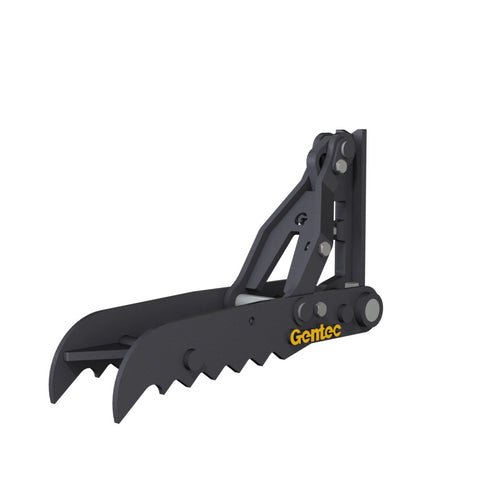

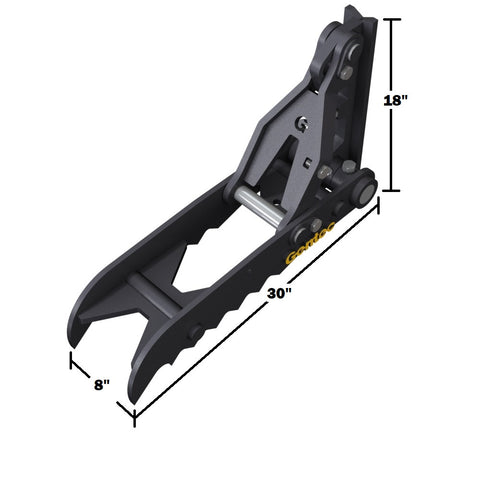

MT830 — 8" x 30"
Recommended excavator weight: 6,000–9,900 lb
Thumb width: 8"
Thumb length: 30"
Backplate width: 3"
Backplate height: 18"
Tine thickness: 1/2"
Tine material: AR400 / Hardox 400
Main pin diameter: 2"
Working positions: 90°, 105°, and 120°
Maximum extension angle: 120°
Distance from stick when stowed: 7.5"
Required stick area for welding: 18"
Mounting style: Weld-on
Operation: Mechanical

Auxiliary hydraulics: Not required
Hydraulic hoses: Not required
In-cab hydraulic controls: Not required

Compatible machine types: Compact and mini excavators
MT824 recommended machine weight: 4,000–9,000 lb
MT830 recommended machine weight: 6,000–9,900 lb
Mounting interface: Weld-on backplate
Installation: Professional welding required
Recommended installer: Qualified equipment dealer, fabrication shop, or experienced equipment welder

The thumb must be manually moved and secured between working and stowed positions. Model selection must be based on excavator size, bucket geometry, and coupler configuration—not operating weight alone.

Provide the excavator make, model, year, operating weight, bucket width, and coupler information so CrewTough can confirm fitment before the order is released.

• Selected Gentec MT824 or MT830 mechanical thumb assembly
• Weld-on backplate
• Adjustable mechanical linkage

1-year limited manufacturer warranty for the original purchaser against defects in materials and workmanship.

Gentec Equipment may repair or replace an approved defective product or part at its discretion.

Warranty claims require immediate notice, a photograph of the defect, and pre-approval before repair, replacement, or return.

The warranty does not cover labor, installation, removal, transportation, misuse, abuse, improper maintenance, unauthorized alterations or repairs, equipment damage, or downtime.
