Gentec Hydraulic Pin-On Excavator Thumb | 4–9.9 Ton Machines
Brand: Gentec Equipment
The Gentec Hydraulic Pin-On Excavator Thumb gives 4–9.9 ton excavators better control when handling logs, rocks, brush, concrete, demolition debris, and other loose or irregular material.
The pin-on design rotates with the excavator bucket, helping the thumb maintain consistent contact throughout its working range. This provides better control when grabbing, holding, sorting, loading, and positioning material.
Each thumb is custom-built to match the customer’s excavator, bucket, and coupler geometry. Gentec uses a completed measurement form to configure the thumb width, length, main pin, and mounting components for the specific machine.
Choose the correct excavator weight class and either a two-tine or four-tine configuration. Two tines are a strong general-purpose choice for logs, rocks, and larger material. Four tines provide wider coverage for brush, loose debris, and irregular loads.
Best for: Handling logs, brush, rocks, concrete, demolition debris, and land-clearing material.
2 Tines: A narrower configuration well suited for general log, rock, concrete, and debris handling.
4 Tines: Provides wider contact and more coverage when handling brush, loose debris, and irregular material.
Quick fit check: Available for excavators weighing 4.0–9.9 metric tons. Auxiliary hydraulics are required. A completed Gentec measurement form and fitment approval are required before production.
Not sure which configuration fits your machine? Send CrewTough your excavator make, model, year, operating weight, bucket width, and coupler information. We’ll help confirm the right setup before your order is released.
Need help? Call or text: 262-402-0444.
We'll make sure it fits your machine and your job.
More Details:
KEY FEATURES
• Pin-on design rotates with the bucket for consistent thumb-to-bucket contact
• Hydraulic operation provides continuous thumb control from inside the cab
• Custom-built to match the excavator, bucket, and quick-coupler geometry
• Thumb width and length are configured using the completed measurement form
• 120° opening angle provides a broad working range
• Compact retracted profile helps limit interference while digging
• Hardox 400 / AR400 steel tines are reinforced with gussets
• Available with two or four tines
• Double-sealed hydraulic cylinder included
• Greaseable pins and hardened main pin help reduce wear
• Custom main pin and mounting components provide machine-specific fitment
• Replacement parts available
• Backed by Gentec’s 1-year manufacturer warranty
AVAILABLE MODELS

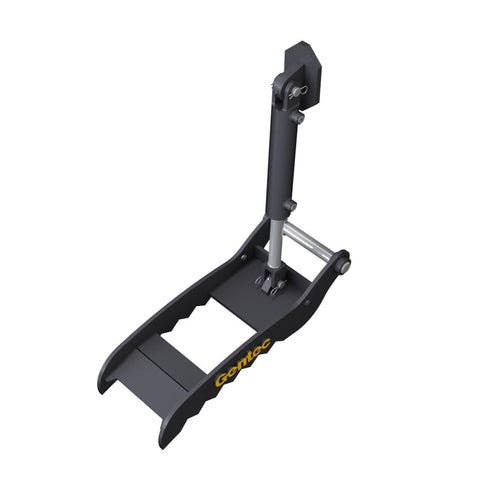

PT220 — 4.0–5.9 Ton / 2 Tines
Recommended Excavator Class: 4.0–5.9 Metric Tons
Tine Configuration: 2 Tines
Tine Thickness: 1/2"
Tine Material: Hardox 400 / AR400 Steel
Opening Angle: 120°
Mounting Style: Custom Pin-On
Operation: Hydraulic
Hydraulic Cylinder: Included
Thumb Width: Custom configured
Thumb Length: Custom configured
Main Pin and Mounting Components: Custom configured
PT420 — 4.0–5.9 Ton / 4 Tines
Recommended Excavator Class: 4.0–5.9 Metric Tons
Tine Configuration: 4 Tines
Tine Thickness: 1/2"
Tine Material: Hardox 400 / AR400 Steel
Opening Angle: 120°
Mounting Style: Custom Pin-On
Operation: Hydraulic
Hydraulic Cylinder: Included
Thumb Width: Custom configured
Thumb Length: Custom configured
Main Pin and Mounting Components: Custom configured
PT230 — 6.0–9.9 Ton / 2 Tines
Recommended Excavator Class: 6.0–9.9 Metric Tons
Tine Configuration: 2 Tines
Tine Thickness: 3/4"
Tine Material: Hardox 400 / AR400 Steel
Opening Angle: 120°
Mounting Style: Custom Pin-On
Operation: Hydraulic
Hydraulic Cylinder: Included
Thumb Width: Custom configured
Thumb Length: Custom configured
Main Pin and Mounting Components: Custom configured
PT430 — 6.0–9.9 Ton / 4 Tines
Recommended Excavator Class: 6.0–9.9 Metric Tons
Tine Configuration: 4 Tines
Tine Thickness: 3/4"
Tine Material: Hardox 400 / AR400 Steel
Opening Angle: 120°
Mounting Style: Custom Pin-On
Operation: Hydraulic
Hydraulic Cylinder: Included
Thumb Width: Custom configured
Thumb Length: Custom configured
Main Pin and Mounting Components: Custom configured
FITMENT & HYDRAULIC REQUIREMENTS
Machine Type: Excavators
Excavator Weight Range: 4.0–9.9 Metric Tons
Mounting Interface: Machine-specific pin-on mounting
Auxiliary Hydraulics: Required
Measurement Form: Required before production
Quick-Coupler Information: Required
Hydraulic Cylinder: Included
Hydraulic Hoses and Fittings: Confirm before ordering
Installation: Professional installation and hydraulic connection required
Recommended Installer: Qualified equipment dealer, hydraulic shop, or heavy-equipment technician
This is a custom-made attachment. Excavator weight determines the general product family but does not confirm final fitment.
The customer must provide the excavator make, model, year, operating weight, bucket information, coupler configuration, photographs, and all measurements requested by Gentec.
The order should not be released for production until CrewTough and Gentec have reviewed and approved the completed fitment information.
Shipping Incl. to lower 48.
Hawaii & Alaska email Support@crewtough.com
1-Year Limited Warranty
Gentec Equipment warrants to the original purchaser that all attachments manufactured by Gentec Equipment are free from defects in materials and workmanship for a period of 1 year from the date of purchase.
If a defect is found within this warranty period, Gentec Equipment will, at its discretion, repair or replace the defective product or part free of charge, subject to the terms outlined below.
Warranty Claim Procedure
Customers must notify Gentec Equipment immediately of the defect by phone or email.
All claims must be accompanied by a photograph of the defective product.
Repairs or replacements must be pre-approved by a Gentec Equipment representative.
The defective product must be returned to a location designated by Gentec Equipment.
Limitations
This warranty does not cover labour costs, including installation, removal, or transportation expenses.
Gentec Equipment’s warranty will not apply to:
Products that, in our judgment, have been misused, abused, or improperly maintained.
Products that are not sold or manufactured by Gentec Equipment or an authorized Gentec Equipment dealer.
Alterations or repairs not authorized by Gentec Equipment.
Damages to equipment or downtime resulting from a defective Gentec Equipment product.
