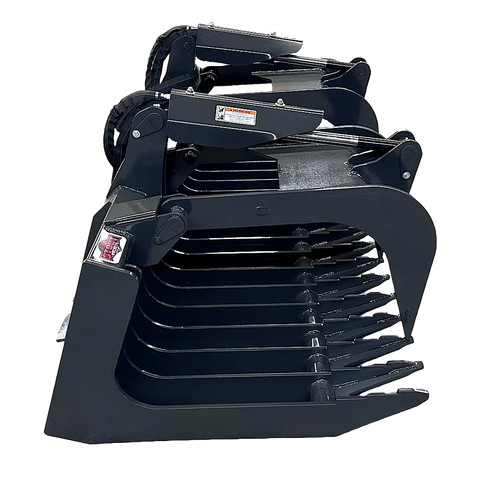

Stout Skid Steer XHD Brush & Root Grapple | 4″ Tine Spacing | Skid Steer Quick Attach
Brand: Stout Buckets
The Stout Skid Steer XHD Brush & Root Grapple with 4″ tine spacing is built for operators who demand maximum strength, tighter material control, and long-term durability in heavy land-clearing and material-handling applications. Constructed entirely from 50,000 PSI Grade 50 steel, this XHD grapple is engineered to thrive in harsh environments where lighter grapples fail.
Designed with 4-inch tine spacing, this model excels at grabbing smaller brush, roots, demolition debris, and dense material that wider-spaced grapples often leave behind. The 72-inch bucket width paired with dual grapples provides balanced clamping force across the entire load, ensuring superior control and reduced material loss.
Structural reinforcements include 3″ x 3″ rear frame square tubing, a 2.5″ forward support tube, and 1/2″ thick grapple arms with 3/8″ webbing, delivering unmatched rigidity under heavy loads. End tines are reinforced to 1/2″ thickness, while interior tines are 3/8″ thick, providing an optimal balance of penetration and strength.
Operator-friendly features like fully greaseable pivot points, fully sleeved hydraulic hoses, and an integrated hose keeper ensure smooth operation, reduced maintenance, and long service life. Hydraulic cylinders automatically compensate for uneven loads, maintaining a secure grip on irregular materials.
Built in the USA and designed for serious work, the Stout XHD 4″ Brush & Root Grapple is a premium attachment for contractors, farmers, land managers, and municipalities who refuse to compromise on toughness.
More Details:
Built entirely from 50,000 PSI Grade 50 steel
4″ tine spacing for tighter debris and brush control
72″ working width with dual grapple arms
End tines 1/2″ thick, center tines 3/8″ thick
Heavy-duty rear frame with 3″ x 3″ square tubing
Forward reinforcement tube 2.5″ diameter
Grapple arms 1/2″ thick with 3/8″ webbing
32″ grapple opening for secure clamping
Hydraulic cylinders automatically adjust to uneven loads
2″ bore x 8″ stroke hydraulic cylinders
2500 PSI working pressure
Fully greaseable grapple and pivot points
Hydraulic hoses fully encased in protective sleeves
Integrated hose keeper prevents pinch-point damage
1/2″ flat face hydraulic couplers
Universal skid steer quick attach (J2513 spec)
Made in the USA
