Stinger Wheel Loader Bale Spear – Series 4 XD (BS4-61-XD)

Regular price $2,150.00
Brand: Stinger Attachments

Extreme-Duty Bale Mover for Wheel Loaders & Telehandlers

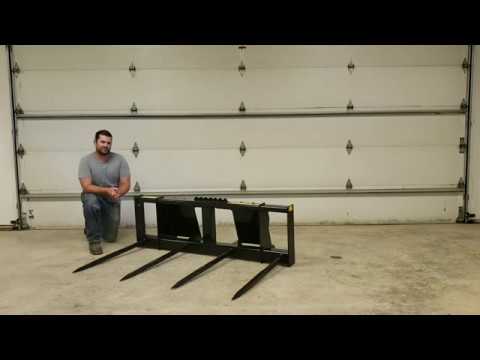

The Stinger Series 4 XD Bale Spear (BS4-61-XD) is built for operators who need to move large square bales — or two at once — quickly and safely using wheel loaders or telehandlers. With a heavy-duty four-tine design, a 14,000 lb total capacity, and rugged American-made construction, this attachment turns your machine into a high-volume hay-moving workhorse.

With 61 inches between the outer tines, the BS4-XD is designed specifically for large square bales and bale bundles. Add the optional bolt-on side supports, and you can securely carry two big squares at the same time — ideal for clearing fields fast, loading trailers, or moving hay in and out of storage.

Choose from 39", 43", or 49" spear lengths, each using heavy-duty Conus 2 replaceable tines rated 3,500 lbs @ 30".

Engineered for Heavy Agricultural Loads
The Series 4 XD is built with a reinforced frame, including:

  • 4"×2"×5/16" top support tube

  • 4"×4"×3/8" bottom tube

  • 1/2" Grade 50 steel side plates

This extreme-duty build handles the stress of loader work day after day. A built-in safety step improves footing when entering or exiting the cab.

Compatible with many ISO-style agricultural and construction mounts, plus additional mount offerings on request.

Perfect For

  • Moving large square bales

  • Transporting 2 bales at once (with bolt-on supports)

  • High-volume feeding operations

  • Loading/unloading hay trailers

  • Commercial farms & custom baling operations

Built in the USA and backed by a Stinger 2-year warranty.

Spear Length
Bolt-On Support for 2 Bales
Mount Options
Regular price $2,150.00

✓ Direct Manufacturer Shipping  |  ✓ Nationwide Delivery

Need help? Call or text: 262-402-0444

More Details:

Four-tine large square bale design
Outer tines spaced 61" apart
Optional bolt-on bale supports for dual-bale carrying
Spear lengths: 39", 43", 49"
Usable spear lengths: 33", 37", 43.5"
3,500 lbs @ 30" per spear
Replaceable Conus 2 tines (double-nut system)
4"×2"×5/16" top support tube
4"×4"×3/8" bottom tube
1/2" Grade 50 side plates
Safety step for secure footing
Compatible with many ISO ag & construction mounts
Built for wheel loaders & telehandlers
American-made extreme-duty build
Backed by a 2-year warranty

Freight shipping rates shown below. Built for commercial, agricultural, and land-clearing operations.

Commercial Freight Shipping (Dock Required)
Business location with loading dock required

Zone 1 (WI, MN, IA): $175
Zone 2 (SD, ND, NE, OK, KS, MO, IL, MI, IN, OH, TN, KY, AR): $250
Zone 3 (NV, AZ, NM, CO, UT, TX, LA, MS, AL, GA, SC, NC, VA, WV, DC, MD, DE, NJ, PA, NY): $325
Zone 4 (WA, ID, MT, CA, FL, CT, RI, MA, VT, NH, ME): $375

Non-Dock Delivery (Farm, Ranch, Home, Residential)
No loading dock available

Zone 1: $225
Zone 2: $300
Zone 3: $375
Zone 4: $425

Important Freight Notes
Please call us for combined shipping on multiple items
Delivery address must be tractor-trailer accessible
Unloading equipment required at delivery
Commercial addresses must have regular business hours
No residential dwellings on commercial property
