Stinger Tractor Bale Spear – Series 3 (BS3)
Brand: Stinger Attachments
A Three-Tine Tractor Bale Spear Built for Large Square & Heavy Round Bales

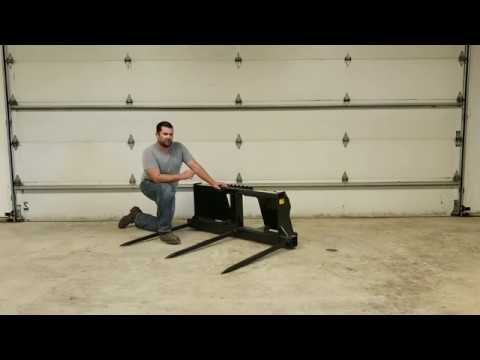

The Stinger Series 3 Tractor Bale Spear (BS3) is engineered for farmers who need a stable, high-capacity attachment for moving large square bales quickly and safely. With a three-tine layout — including two outer tines spaced 52 inches on center and one center tine for added support — this spear gives your tractor the leverage, balance, and control required for handling today’s heavy, high-density bales.
Whether you're stacking hay, loading trailers, feeding cattle, or managing your storage yard, the BS3 turns your tractor into a powerful hay-handling machine.
Heavy-Duty American-Built Frame
Built with 3/8" Grade 50 steel side plates, a 4"×2"×¼" top support tube, and a 4"×4"×¼" bottom tube, the Series 3 spear is designed for durability under heavy load cycles. The 70° back angle provides optimal bale support while keeping visibility clean and safe for operators.
Weight: 280 lbs (with 43" spears)
Replaceable, High-Capacity Spears
Choose from 39", 43", or 49" spears, all using Stinger’s double-nut fastening system for quick replacement and long-term field reliability.
Usable lengths:
-
39" spear → 33" usable
-
43" spear → 37" usable
-
49" spear → 43.5" usable
Perfect For
-
Large square bales
-
Heavy round bales
-
High-volume hay operations
-
Trailer loading/unloading
-
Feeding cattle & bedding applications
Built with the same American steel and workmanship found in every Stinger attachment — and backed by a 2-year warranty.
✓ Direct Manufacturer Shipping | ✓ Nationwide Delivery
Need help? Call or text: 262-402-0444
More Details:
Three-spear tractor bale handler for large square and heavy round bales
Wide outer-tine spacing and center tine support load stability
Choice of three replaceable spear lengths
Double-nut spear retention
Grade 50 steel frame with reinforced support tubes
Built-in safety step
Made in the USA
Selectable Spear Lengths: 39", 43", or 49"
Usable Lengths: 33" for the 39" spear; 37" for the 43" spear; 43.5" for the 49" spear
Spear Layout: Three tines, with outer tines spaced 52" on center
Top Tube: 4" x 2" x 1/4"
Bottom Tube: 4" x 4" x 1/4"
Side Plates: 3/8" Grade 50 steel
Back Angle: 70°
Approximate Attachment Weight: 280 lb with 43" spears
The listing does not provide an assembled attachment capacity. Safe capacity is limited by the attachment, tractor loader, mount, bale weight, and load center.
Designed for tractor loaders using a skid-steer-style quick-attach carrier.
Confirm the carrier interface and safe loader capacity for the selected spear length, attachment weight, bale weight, and load center before use.
One Stinger Series 3 Tractor Bale Spear frame with skid-steer-style hookup and safety step
Three replaceable spears in the selected 39", 43", or 49" length
Stinger manufacturer warranty: 2 years
